Aim of module

Analyses a set of labelled point cloud tiles and sets up a new SPT project directory. Running clfSPTSetup is the mandatory first step in the training workflow before proceeding with clfSPTPreprocess and clfSPTTrain.

General description

This script serves as the entry point for the SPT training workflow. Its primary job is to generate the necessary configuration files and directory structure required by the downstream tools. To do this, it scans the point cloud files (supporting all formats handled by pyDM.Import) to determine their semantic class distributions and check which point attributes are available for model training. Based on the class distributions, it creates either a stratified or random train/validation/test split and organises everything into a clean project structure containing <project>.cfg and <project>_config.py. For adjusting the dataset splits it is not necessary to re-run the script, it is also possible to move files between the split folders manually.

See also: Script documentation

The Superpoint Transformer model expects labels within the range \([0, C]\), where \([C - 1]\) represents the total number of valid classes, with \(C\) reserved as IGNORE_LABEL. clfSPTSetup reads standard ASPRS classification codes from the input files and builds a remapping template (ID2TRAINID) inside <project>_config.py.

The classification attribute is strictly required, tiles missing this attribute are skipped with a warning and won't contribute to the project setup.

Class detection and mapping

For every distinct value found in the classification attribute, the script maps it against the standard ASPRS LAS 1.4 codes (0 - 18). Any unknown IDs are given the name Class_<ID>. By default, four standard IDs are excluded because they usually represent noise or unlabelled points rather than actual semantic objects:

ASPRS Code	0	1	7	18
Description	Never classified	Unclassified	Low point / noise	High noise

Once the initial scan is done, an interactive table is shown, displaying the detected classes, their point shares, and their status. It is possible to rename classes and remap them to other IDs:

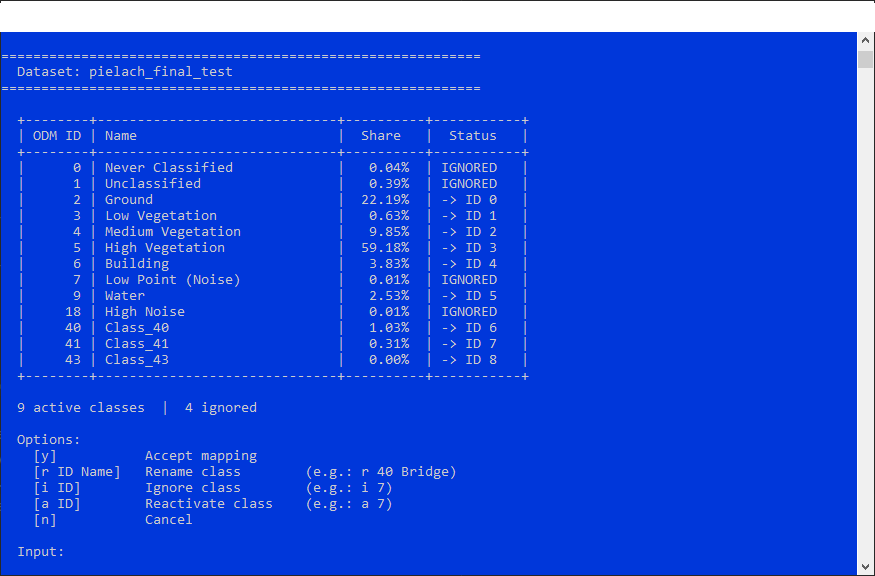

Fig.1 Interactive window for class ID management

The final mapping translates source codes into contiguous, zero-indexed IDs which becomes the single source of truth for the entire project (ID2TRAINID in <project>_config.py).

Feature detection

Point features fall into two groups, depending on whether they are already present in raw point clouds or need to be derived beforehand with a dedicated OPALS module:

Usually available are Amplitude (intensity), Red/Green/Blue, NrOfEchos, and Reflectance. clfSPTSetup picks these up automatically if present.

Geometric features like linearity, planarity, scattering, verticality, and elevation are processed internally from the local point neighbourhood as part of the model's own partitioning pipeline. The elevation attribute, however, can be derived from a dedicated DTM created by OPALS (see clfSPTPreprocess and AddInfo for more information).

Before starting the whole training workflow, it is worth considering deriving some attributes beforehand with dedicated OPALS modules. The model currently supports NormalX/Y/Z - Module Normals and EchoRatio - Module EchoRatio.

Split Ratio

The default train/val/test ratio of 70/15/15 follows common machine learning conventions, alongside alternatives like 80/10/10. There is no universal optimum, as the split ratio depends heavily on the dataset size and point distribution.

For ALS datasets and spatial data in general, two key factors make it beneficial to assign slightly more weight to the validation split than to the test split:

Checkpoint selection: The validation split is actively used throughout training to evaluate model performance and select the best checkpoint out of all epochs. An unrepresentative validation set can systematically bias which checkpoint is saved. In contrast, the test split is evaluated only once at the very end to report final metrics. Noise in the test set affects only the reported numbers, not the trained model itself.
Low total tile count: ALS training datasets typically consist of a relatively small number of spatially contiguous tiles. Therefore, percentage-based splits can result in very few tiles assigned to the validation split. As each tile covers a large area with high spatial autocorrelation, a small number of tiles may fail to capture the full variability of rare semantic classes, even when using the stratified splitting strategy, which distributes tiles across splits by solving a linear program that weights each class inversely by its frequency, ensuring that rare classes are represented in every split rather than being concentrated in one.

Because of this, a ratio such as 70/20/10 (prioritising the validation over the test set) is often preferable, especially for datasets with higher morphological and structural variability. Regardless of the chosen ratios, always review the per-split class distribution printed at the end of the run.

Main Folder Structure

clfSPTSetup sets up the main folder structure under projectDir:

<projectDir>/
|-- data/
|   |-- raw/
|   |   |-- train/
|   |   |-- val/
|   |   `-- test/
|   `-- Processed/
|-- configs/
|   |-- <project>_config.py
|   `-- <project>.cfg
`-- runs/
    `-- train/

The input files are copied into their respective split folders and two key files are generated:

<project>_config.py: holds immutable dataset properties: NUM_CLASSES, IGNORE_LABEL (=NUM_CLASSES), CLASS_NAMES, CLASS_COLORS, the ID2TRAINID mapping, active FEATURE_FLAGS and the ELEVATION_SOURCE ('spt' by default for internal computation or 'opals' to use the precomputed NormalizedZ attribute).
<project>.cfg: holds the training and partitioning parameters pre-filled with sensible defaults (voxel size, learning rate, batch size, nr. of epochs, etc.), along with the detected feature dimensions. The model parameter (spt-2 or spt-3) selects the number of hierarchical partition levels used throughout the pipeline. The partition parameters pcp_regularization, pcp_spatial_weight and pcp_cutoff are automatically trimmed to match it when the .cfg is loaded, so preprocessing only builds as many partition levels as the model will actually use. Changing model after preprocessing requires re-running clfSPTPreprocess.

Both files can be edited before running clfSPTPreprocess.

Parameter description

clfSPTSetup input

Input files

-inFile input point cloud tiles (*.odm / *.las / *.xyz / *.bxyz / *.csv / *.fwf / *.sdc / *.rdb)

Type : Path
Remark : mandatory
Description: Labelled tiles the project is set up from. Single file or wildcard expression. All tiles require a classfication attribute.

Logging Options

Settings concerning the verbosity level of logging.

-fileLogLevel Log level in the logfile

Type : LogLevel
Remark : optional, default: info

-screenLogLevel Log level on screen

Type : LogLevel
Remark : optional, default: info

-logger Logger

Type : Logger
Remark : optional
Description: Logger is usually provided by the opals framework.The user may provide their own logger object, but it has to function in the same way as the opals Logger.

clfSPTSetup output

Output directory

-projectDir project directory

Type : Path
Remark : mandatory
Description: Directory the project structure, the split folders and the configuration files are created in. Created if not exists, its name is used as dataset name.

clfSPTSetup split options

Settings controlling the distribution of tiles across train/val/test splits.

-split Split strategy

Type : String
Remark : optional, default: stratified
Description: 'stratified' balances the class distribution across the splits by solving an optimization problem using pulp, 'random' assigns the tiles randomly. Files can still be moved manually after setup.

stratified

random

-trainRatio fraction of tiles used for training

Type : Floating-point number
Remark : optional, default: 0.7
Description: Together with valRatio it must be smaller than 1, the remainder forms the test split.

-valRatio fraction of tiles used for validation

Type : Floating-point number
Remark : optional, default: 0.15
Description: For monitoring the process during training to select the best checkpoint. The test split provide the unbiased accuracy after training.

-SkipInteractiveMapping Skip interactive class mapping confirmation

Type : Boolean
Remark : optional, default: False
Description: Accepts the automatically detected class mapping without prompting. Useful for scripted/automated runs where the class set is already known.

possible input	evaluates to
1, true, yes, Boolean(True), True	Boolean(True)
0, false, no, Boolean(False), False	Boolean(False)

Examples

A Setup call distributes tiles into train/val/test splits and generates the project configuration:

clfSPTSetup -inFile "C:/data/tiles/*.odm" -projectDir C:/project_name -trainRatio 0.7 -valRatio 0.2

During Setup, the user is prompted to map the raw Classification attribute values (typically ASPRS codes) to semantic class names. This dialog can be used to merge classes (e.g. Low/Medium/High Vegetation -> Vegetation) or remove rare classes.

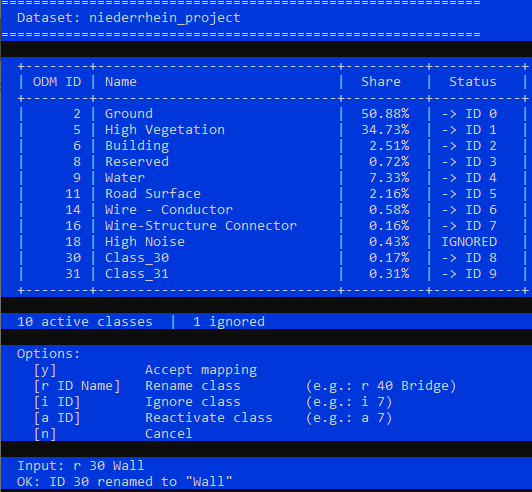

Fig. 1 Class renaming dialog

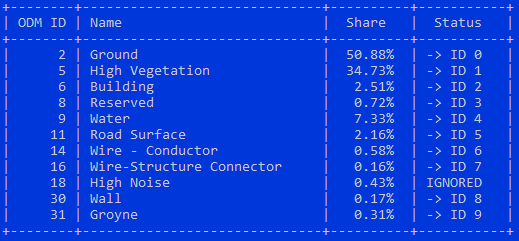

Fig. 2 Resulting class mapping

The mapping is stored in configs/{datasetName}_config.py and controls num_classes for the entire pipeline.
